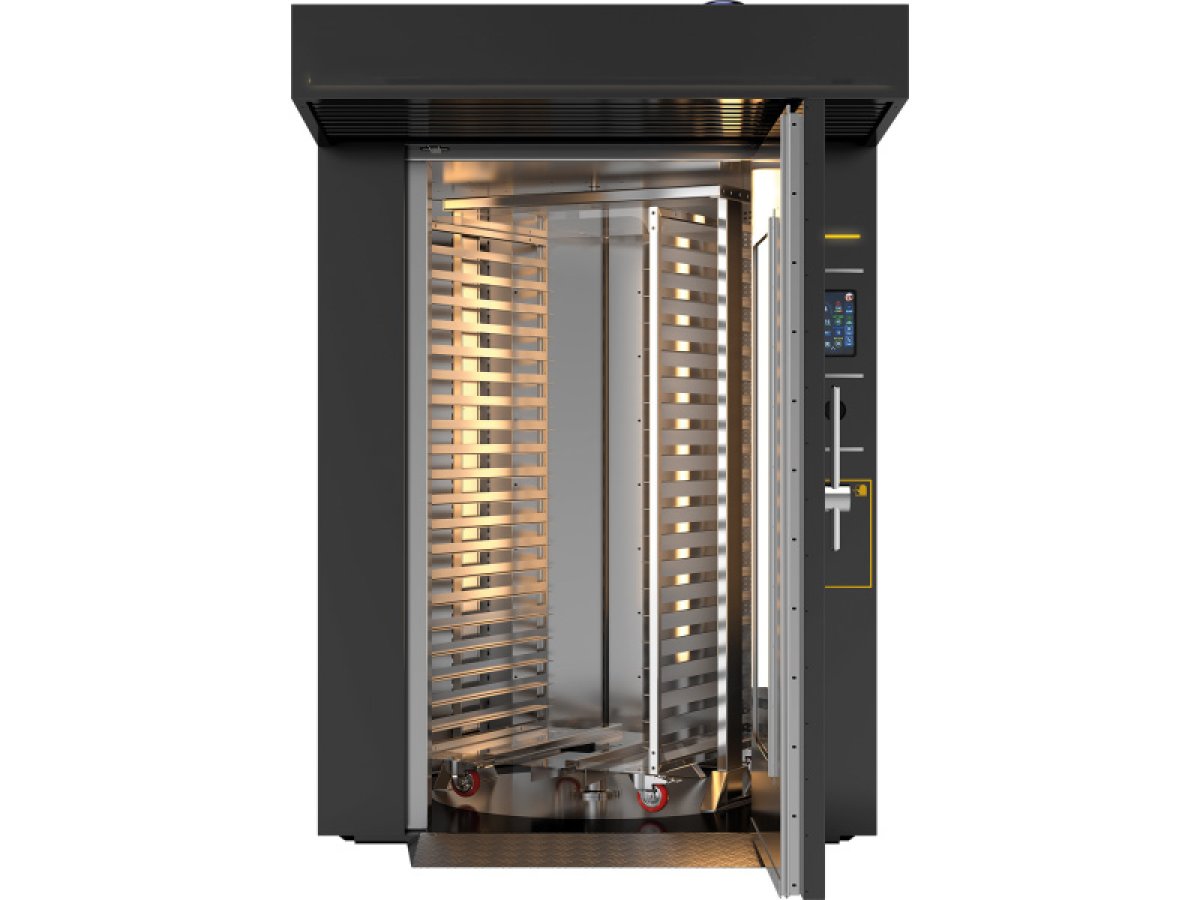

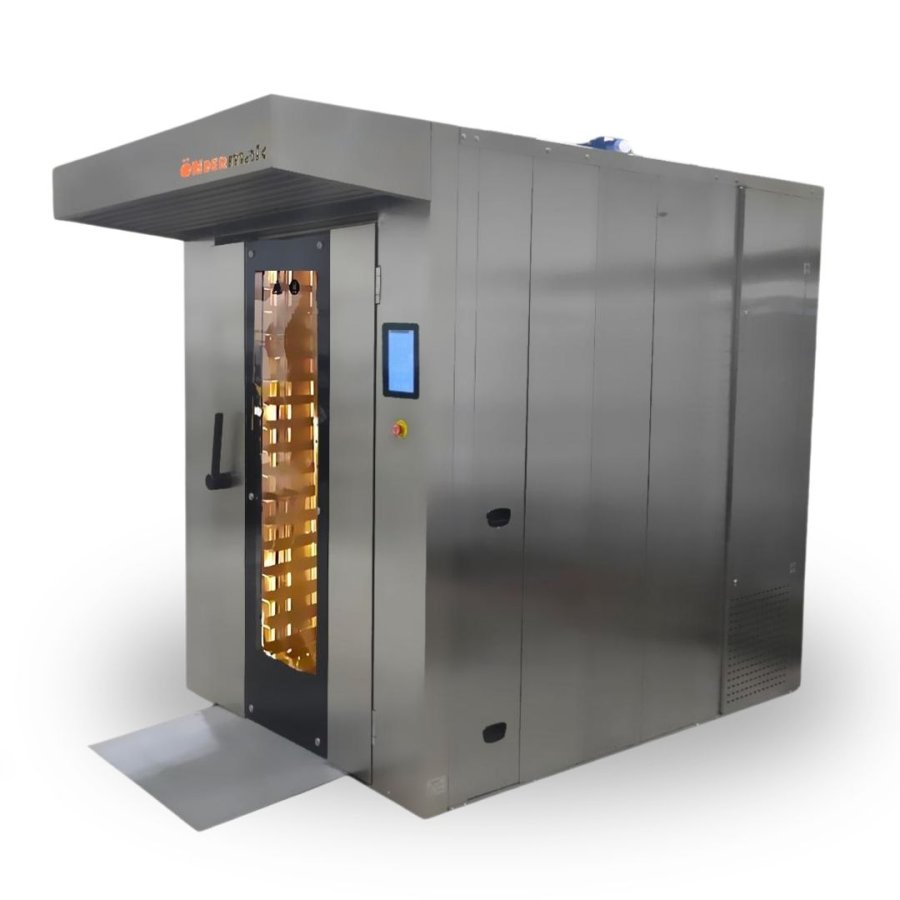

  • New Generation Rotary Oven
  • Available in two versions: stainless steel finish and decorative black coating
  • Compatible with gas, electricity, fuel oil, and LPG
  • Comes in S (Small), M (Medium), MH (Higher Medium), and B (Big) sizes to accommodate different tray types
  • Riello or Bentone burner options
  • Turntable-based system with a pulley and belt mechanism

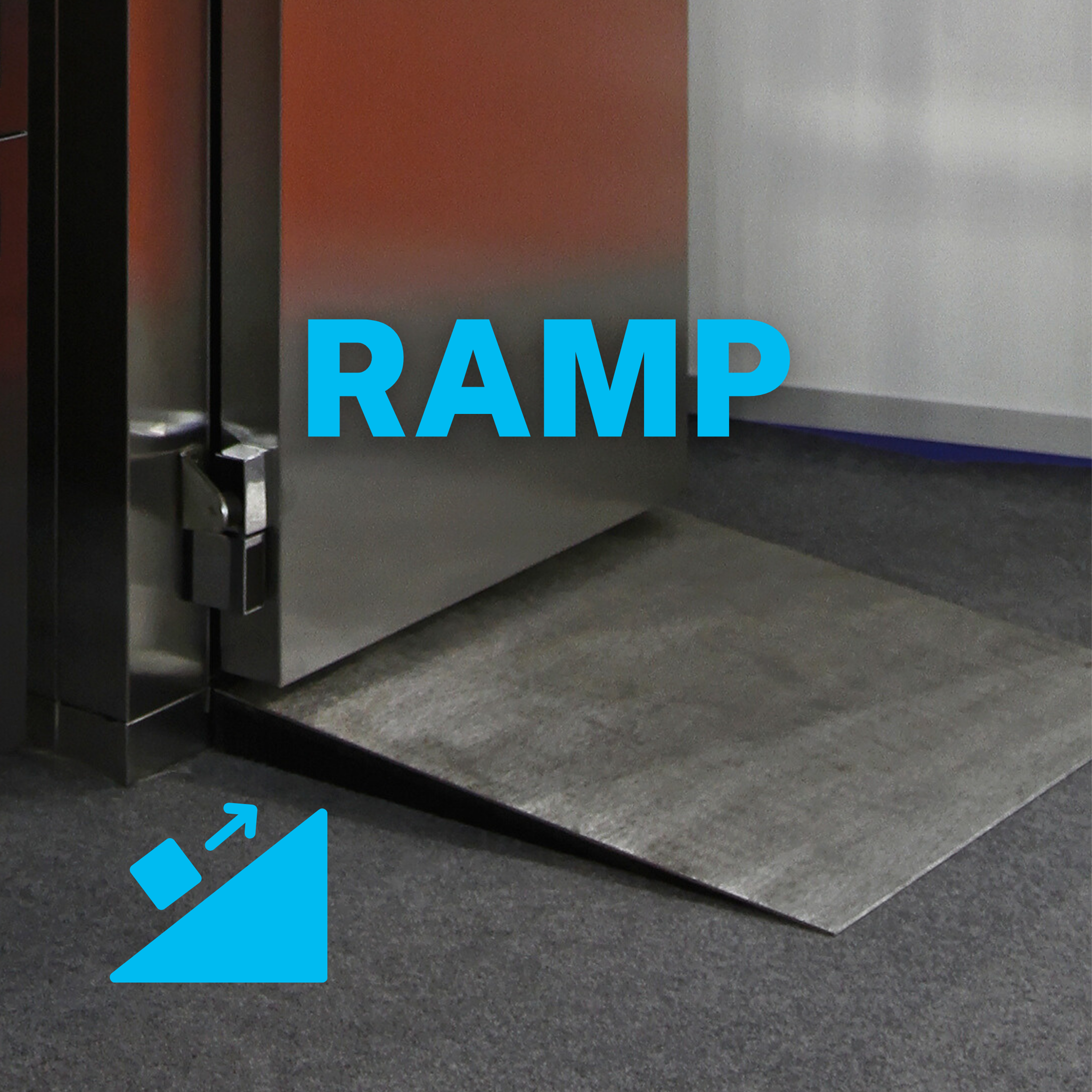

  • Low 3 cm ramp height for easy trolley access

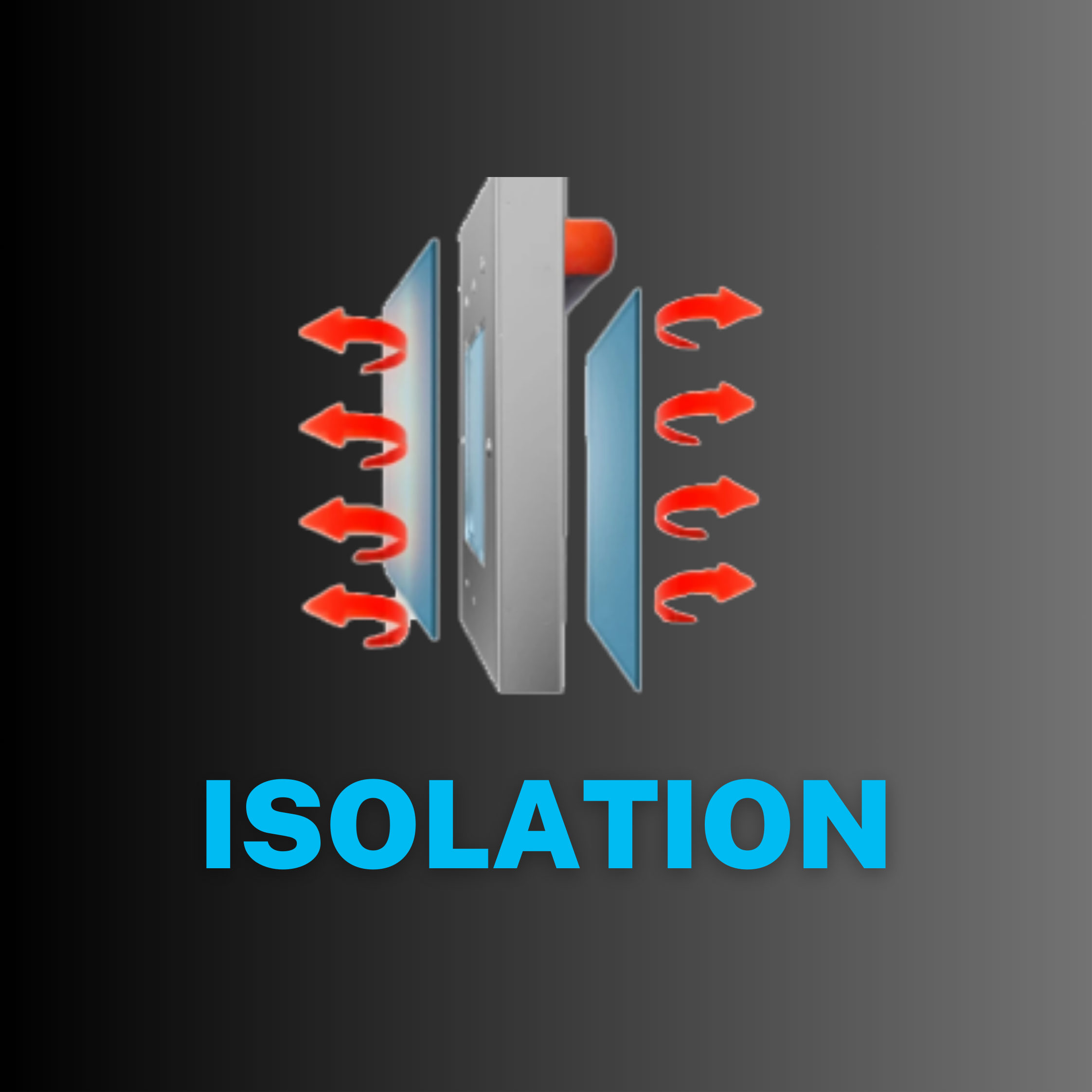

  • High insulation on the door gasket and internal structure

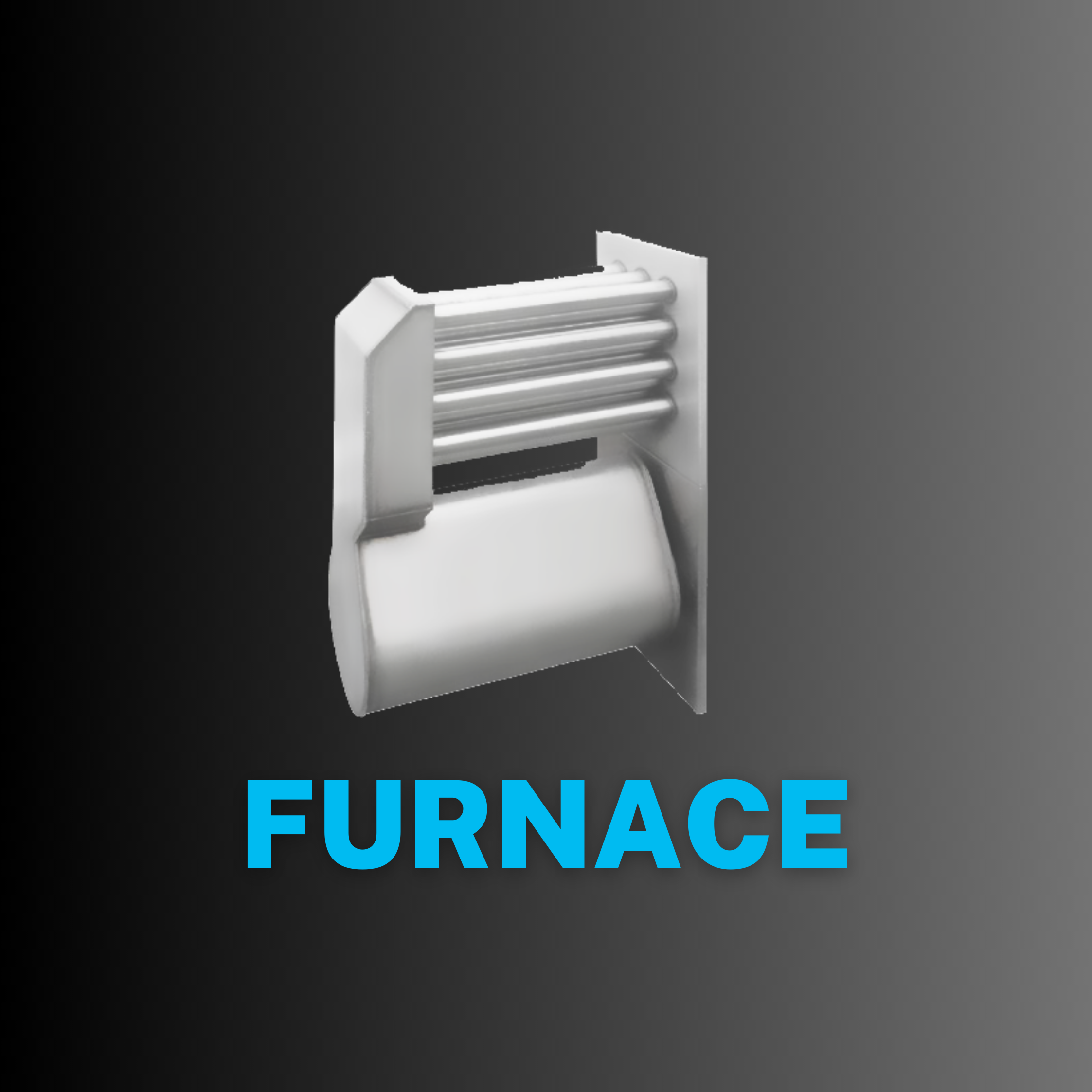

  • Durable and reinforced furnace, made of 321 DIN stainless steel
  • Stainless steel panels for both the interior and exterior
  • Powerful stainless steel air hood
  • Tempered glass for superior thermal insulation
  • Bright chamber illumination with thermal lamps

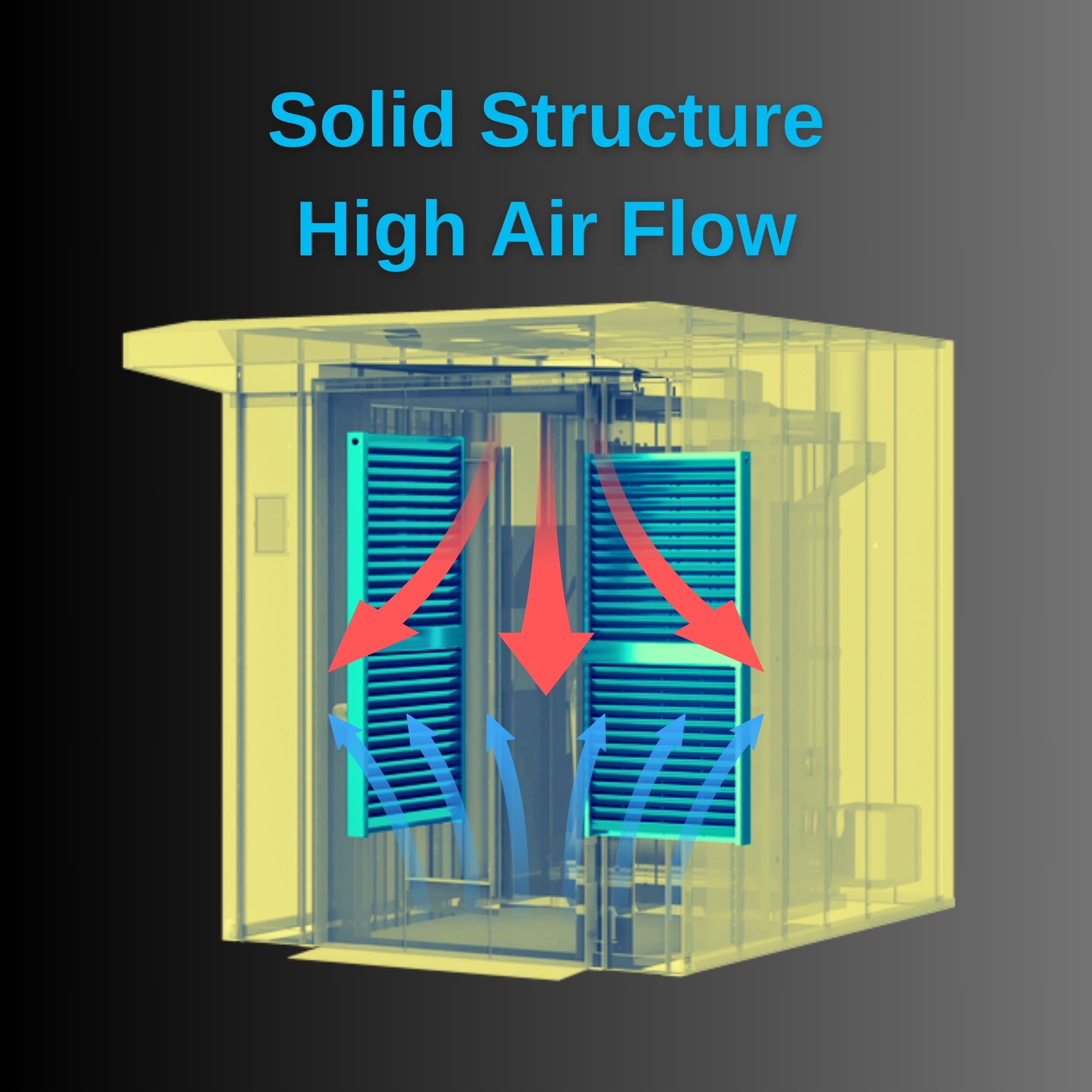

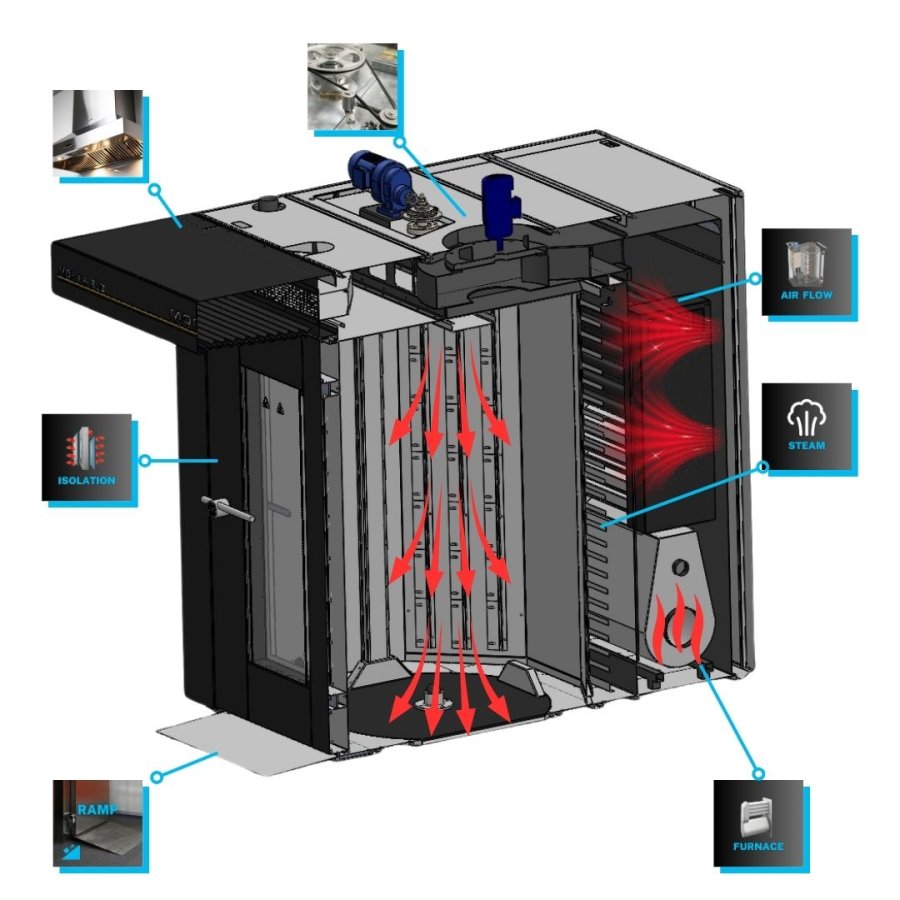

  • Optimized airflow system for homogeneous baking
  • Waterfall-type steam distribution with high-performance steamers
  • Ergonomic door handle for ease of use
  • Rear-side burner compartment

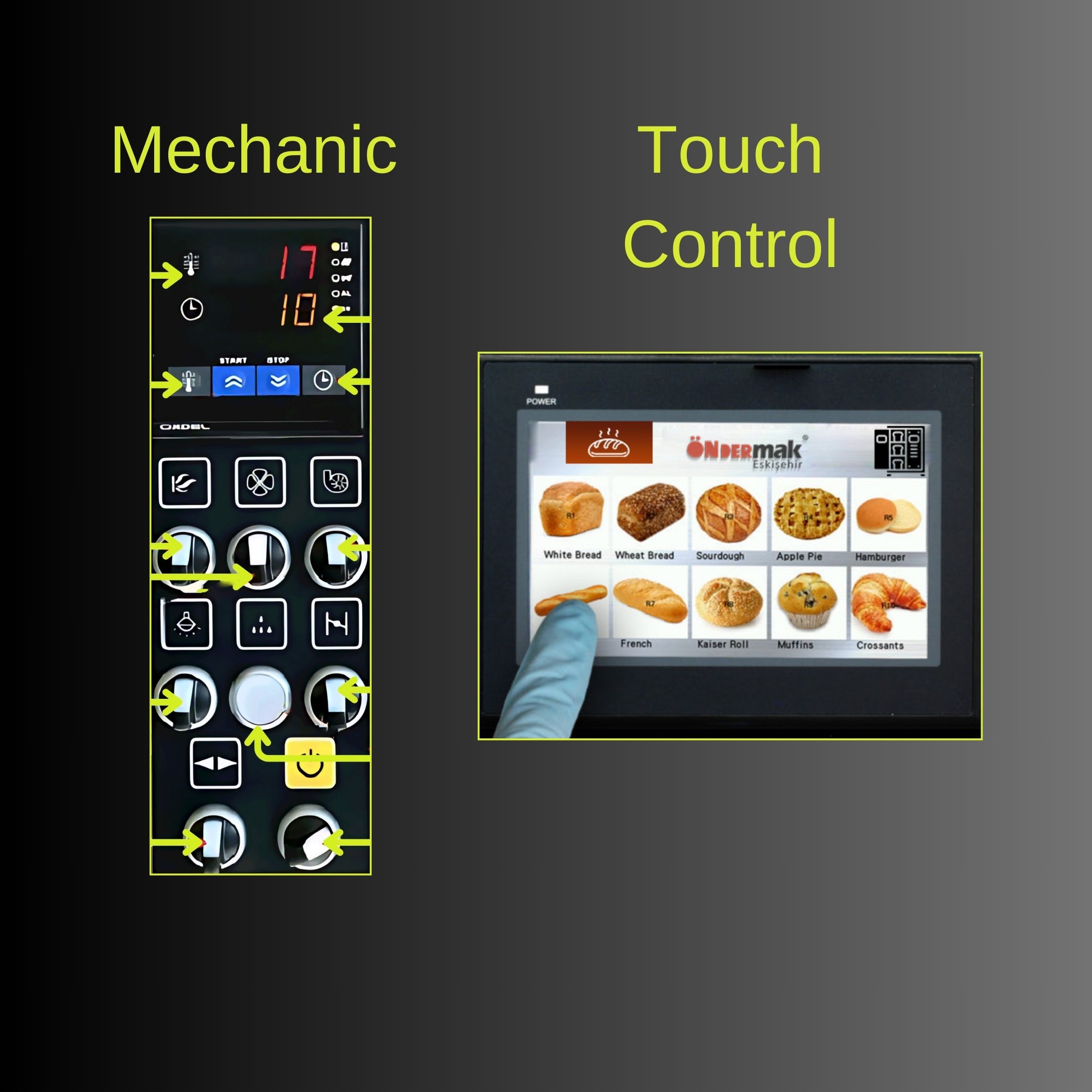

  • Programmable touch-screen control panel (standard)
  • Electromechanical control panel (available on request)
  • Optional PLC inverter
  • 1-year warranty – CE-certified product



Technical Specifications
Model Modelo Модель Gas(G) - Electric(E) Unit Birim Unidad Единица DNF-S(G)  DNF-S(E) DNF-M(G) DNF-M(E) DNF-MH(G) DNF-MH(E) DNF-B(G) DNF-B(E)
Baking Area - Pişirme Alanı Área Cocción - Зона выпекания m2 4.2 5,2 - 7,2 6,6-8,5 11,2-14,4
Tray Nr. - Tepsi Sayısı No. Bandejas - Номер поддона Nr. adet hомер 9-12 11-15 14-18 14-18
Tray Size - Tepsi Ebadı Dimension Bandeja-Размер поддона mm 53x65 50x70 60x80 60x80  75x104 74x98 80x100
Distance Between Trays Tavalar Arası Mesafe Distancia Entre Bandejas Расстояние между поддонами mm 114-85 114-90 114-90 114-90

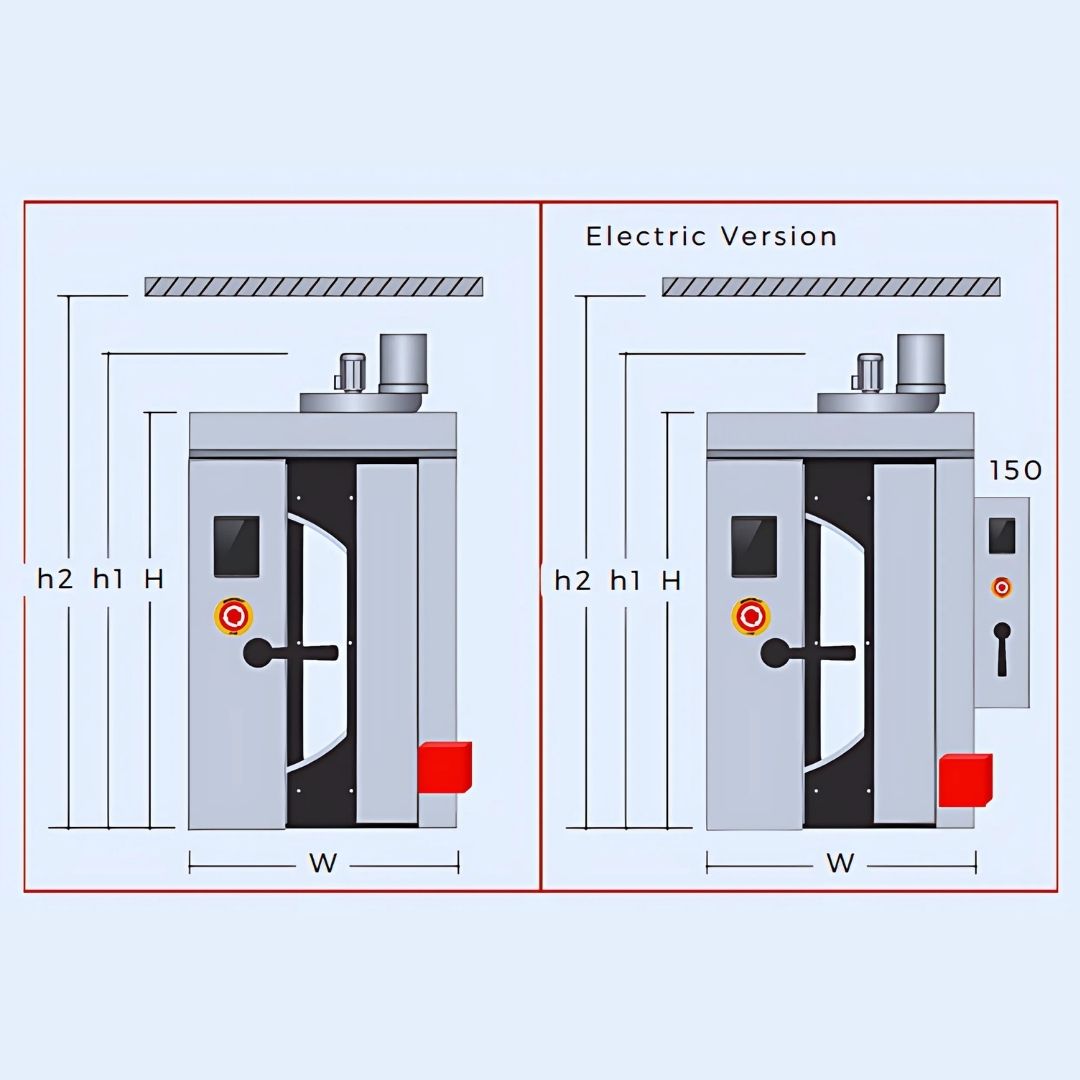

Width (W) - Genişlik Ancho - Ширина mm 1150 1300 1300 1600

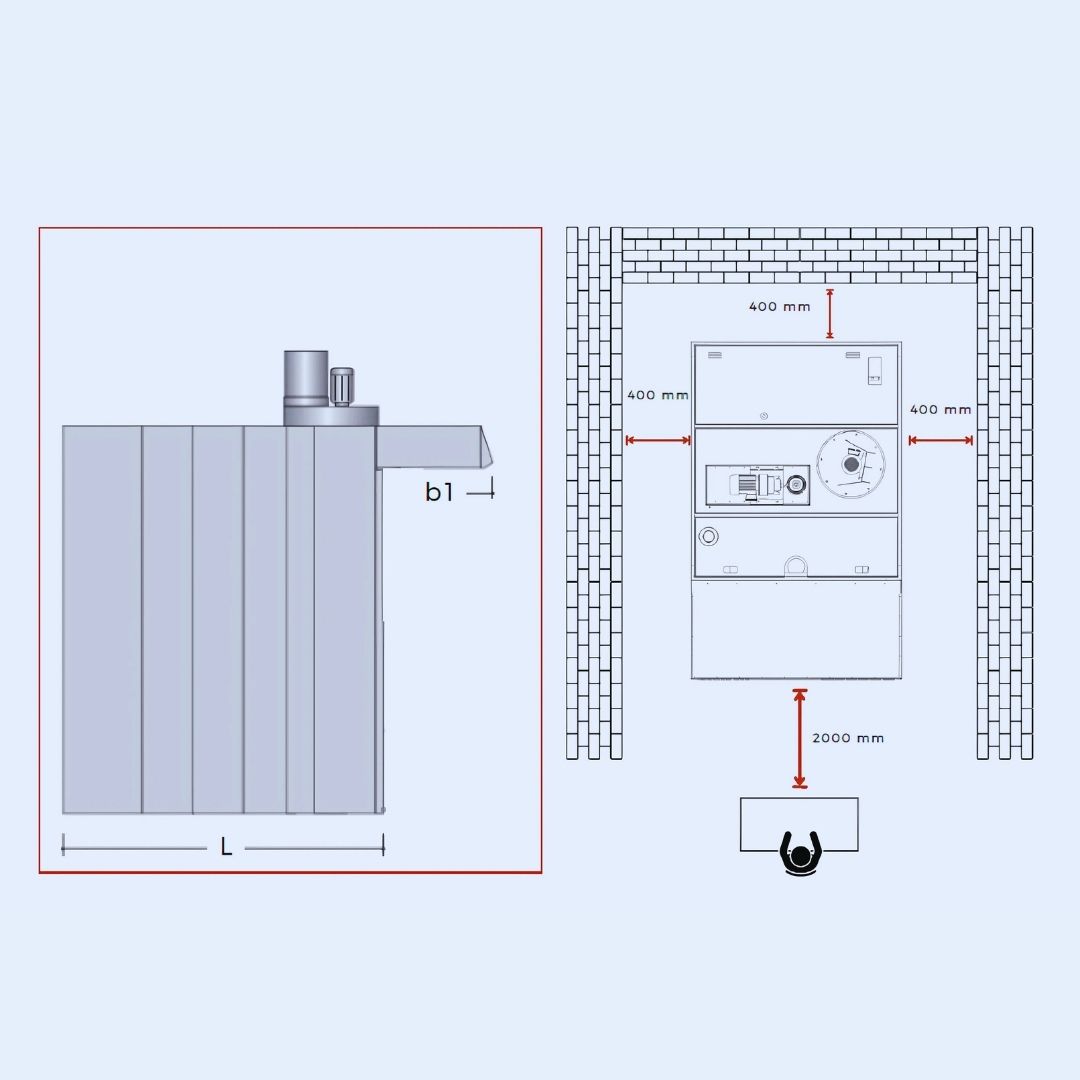

Length (L) - Derinlik Longitud - Длина mm 1650 2000 2000 2350
Deep (b1) - Derinlik Longitud - Длина mm 2300 2650 2650 3000
Heigth (H) - Yükseklik Altura - Высота mm 1750 2000 2250 2250
Heigth (h1) - Yükseklik Altura - Высота mm 2050 2300 2550 2550
Ceiling Heigth (h2) - Yükseklik Techo Altura - Высота mm 2550 2800 3100 3100
Energy - Elektrik Gücü Potencia - Энергия Kw 3 3.5 3,5 3.5
Thermal Power - Isı Kapasitesi Potencia Térmica - Тепловая мощность kcal / saat 32000 50000 60000 70000
Gas Pressure - Gaz Bağlantı Basıncı Bar De Gas -Давление газа mbar 50 50 50 50
Energy Type - Enerji Tipo De Energía - Тип энергии   Dizel - Doğalgaz - LPG - Elektrik Enerjisi
Weight - Ağırlığı Peso - Bec kg 1000 1300 1450 1750
*Burner Capacity - Burlör Kapasitesi Capacidad Quemador Мощность горелки KW 42-116 42-116 42-116 81-175
Chimney Outlet Diameter Baca Çapı - Diámetro De Chimenea Диаметр дымохода mm Ø175 Ø175 Ø175 Ø190
Hood Diameter Aspiratör Çapı - Diámetro De Campana Диаметр вытяжки mm Ø200
Control - Управление Touch - Dokunmatik - Táctil - Сенсорный экран
Consume -Tüketim - Consumo - Потребление Gasolina/LPG (lt/hr) 3.6 5.7 6,8 8
Gas (m3/hr) 4.2 6.5 7.9 9.2
Kw 25 35 45 55
Connection - Elektrik Bağlantısı Conexión - Подключение 400 VAC - 50/60hz 3P + N + PE
Maximum Temperature - Isı Temperatura máxima Максимальная температура 300 C
