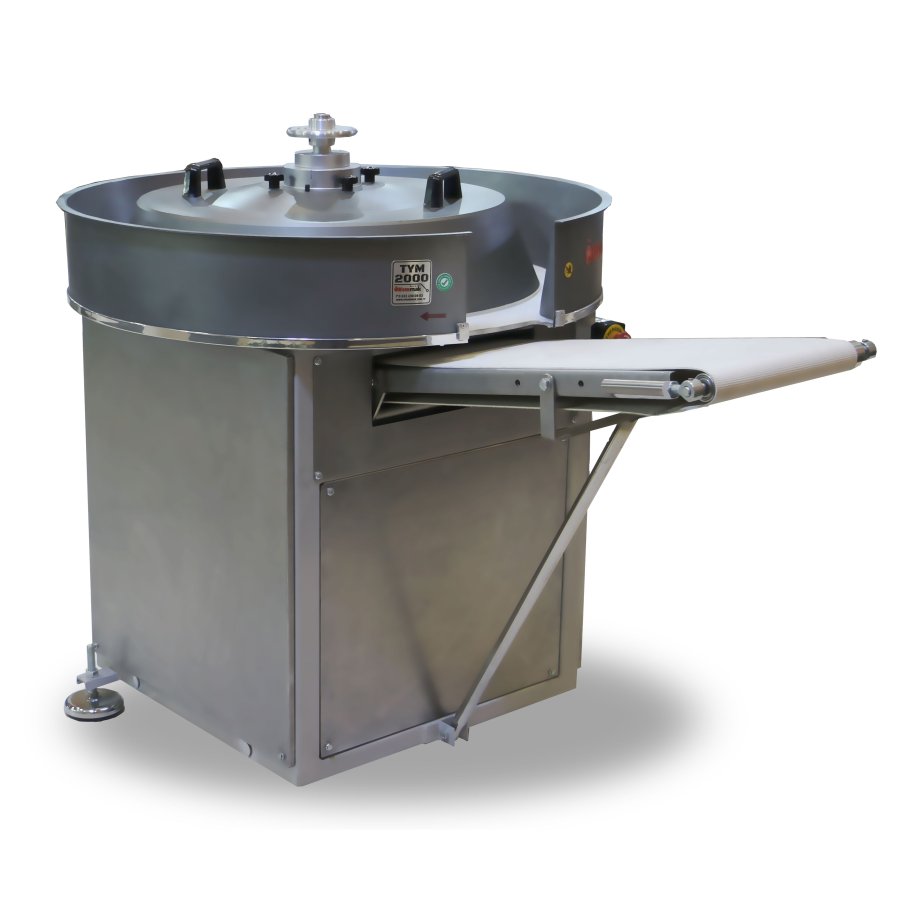

» Ultimate eccentric rounder
» Develpoed for rounding the high volume artisan breads
» Thanks to the eccentric setup, horizontal rounding moves like a human hand
» Enable to adjust dough tightness by upper handle
» 400 - 4000 gr. rounding rate
» Front end adjustable conveyor band for dough output
» Teflon coated horizontal aluminium cast cone and rear channels (standard}
» Flour duster (standard}
» Speed control unit (standard}
» Completely stainless steel structure
» Fixing stopper and heavy duty caster wheels
» Oil sprayer (optional}
» Easy to clean and maintenance by pin setup
» CE certificated & 2 years of warranty

Technical Specifications

KAPASITE (ADET/SAAT) / CAPACITY (PCS/HR) / CAPACIDAD (PZS/HR)

2000

YUVARLAMA ARALIĞI / ROUNDING RANGE / MASA PESO  (GR)

400 – 4000

GENIŞLIK W / WIDTH / ANCHO  (MM)

920

UZUNLUK L / LENGTH / LARGO (MM)

1100

YÜKSEKLIK H / HEIGHT / ALTURA (MM)

1265

HAMUR GIRIŞ YÜKSEKLIĞI (H1) / DOUGH INPUT / ALTURA ENTRADA DE MASA (MM)

1700

HAMUR ÇIKIŞ YÜKSEKLIĞI (H2) (MM) / DOUGH OUTPUT / ALTURA SALIDA DE MASA (MM)

1100

ELEKTRIK GÜCÜ / ELECTRIC POWER / ENERGIA  (KW)

0,75

AĞIRLIK / WEIGTH / PESO NETO (KG)

260

UNLAMA UNITESI / FLOUR DUSTER / HARNIDORA

VAR /  AVALIABLE / SI

HIZ KONTROL RÖLESI /  SPEED CONTROL UNIT / CONTROL DE VELOCIDAD

VAR /  AVALIABLE /SI

MATERYAL / MATERIAL / MATERIA

PASLANMAZ / STAINLESS STEEL + TEFLON COATED / ACERO INOXIDABLE + REVESTIDO TEFLON
