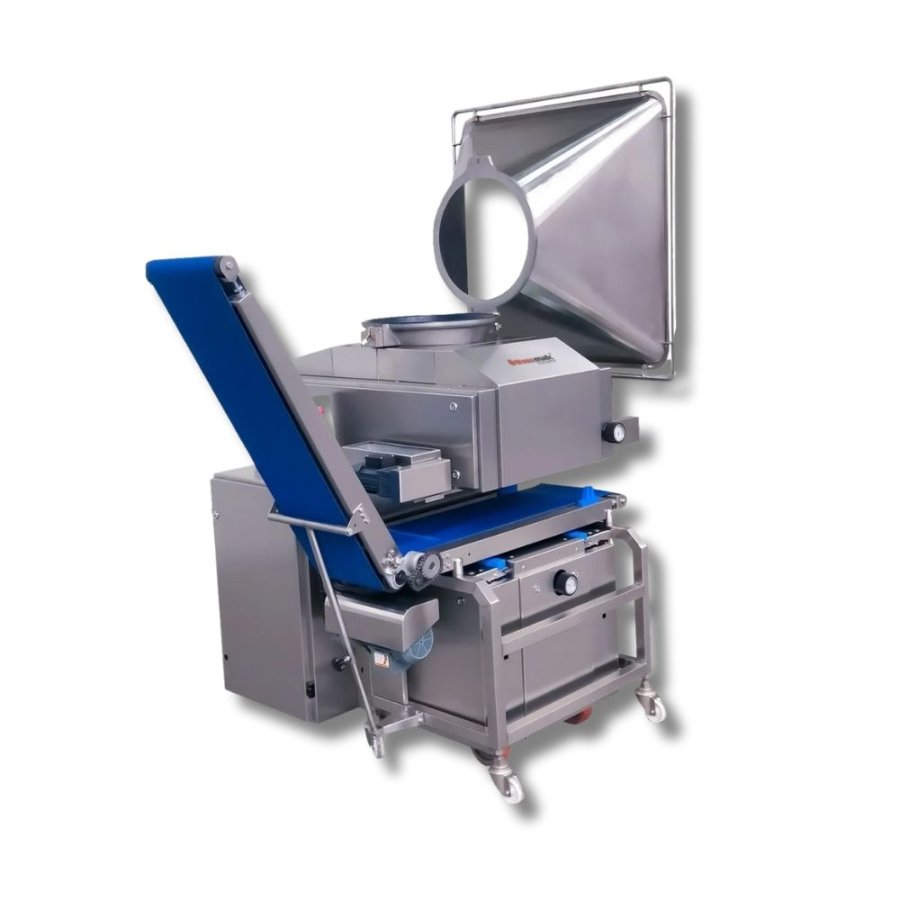

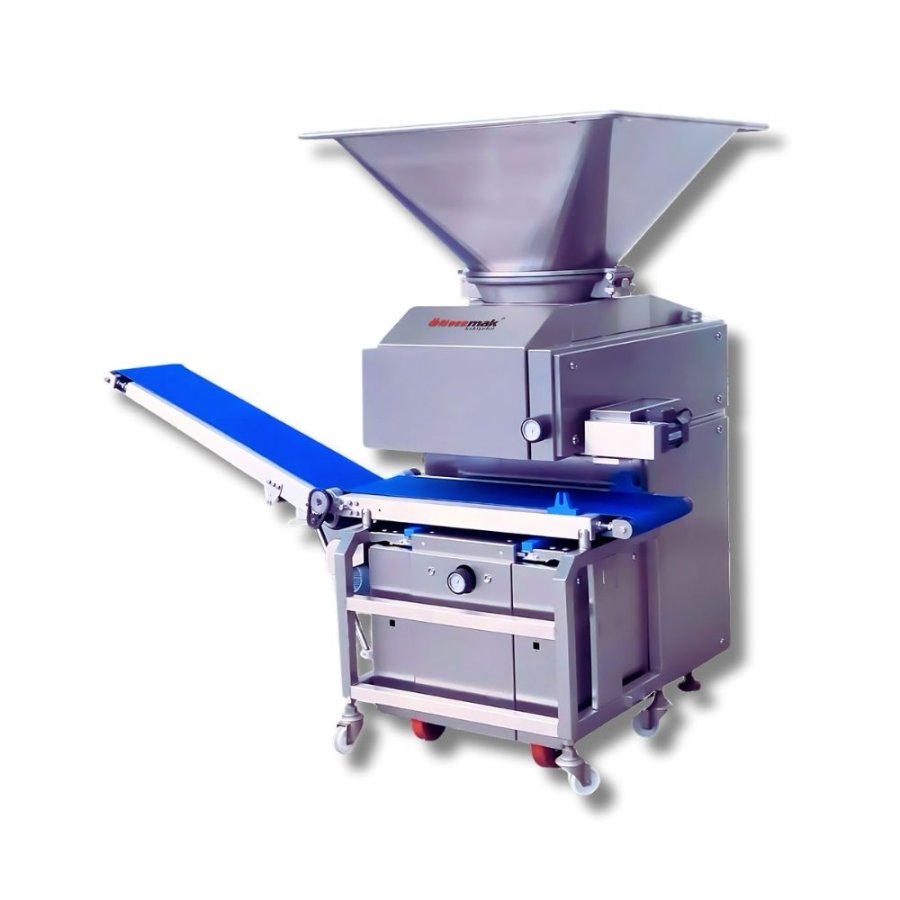

- Profesional volumetric divider for indsutries
- stainless steel 210 lt .capacity hopper
- complete stainless steel structure
- independent conveyor belt with speed control
- wheels , easy to move
- Iron cast , premium quality suction system with 1,2,3 pistons
- Automatic flour duster
- Analog gram and spring adjustment
- ultimatepiston system
- BEKA brand, oil pump , 7lt.capacity with level indicator
- Analog control unit
- safety switches
- speed control
- piece counter
- Teflon coated hopper(+)
- Automatic flour duster (+)
- Custom version of discharge conveyor(+)
- Hopper oiling feature(+)
- Teflon-coated 250 kg drop hopper volume(+)
- Conveyor safeguard(+)
- Trip wire safety switch for hopper(+)
- HMI Controlle(+)
- HMI Controller (with automatic weight adjustment)(+)
- CE certificated & 2 years of warranty
Technical Specifications
| Unit | 1 x Piston | 2xPiston | 3xPiston | |
| Kapasite Capacity Capacidad |
pcs/hr. | 1200 | 2600 | 3900 |
| Gramaj Aralığı Weigth Range Rango Gramaje |
gr. | 400-2400 | 100-1200 | 100-650 |
| YaÄŸ Tüketim Oil Consumption Consumo De Aceite |
Lt/hr. | 0,5-0,9 | ||
| En Width Ancho |
mm | 880 | ||
| Boy Length Largo |
mm | 1260 | ||
| Yükseklik Heigth Altura |
mm | 1805 | ||
| Ağırlık Weigth Peso |
kg | 900 | ||
| Güç Power Supply Energia |
KW | 2 | ||
| Elektrik Electricity Conexion |
Hz | 400Vac 50Hz (3PH+N+PE) | ||
