TECHNICAL DRAWING

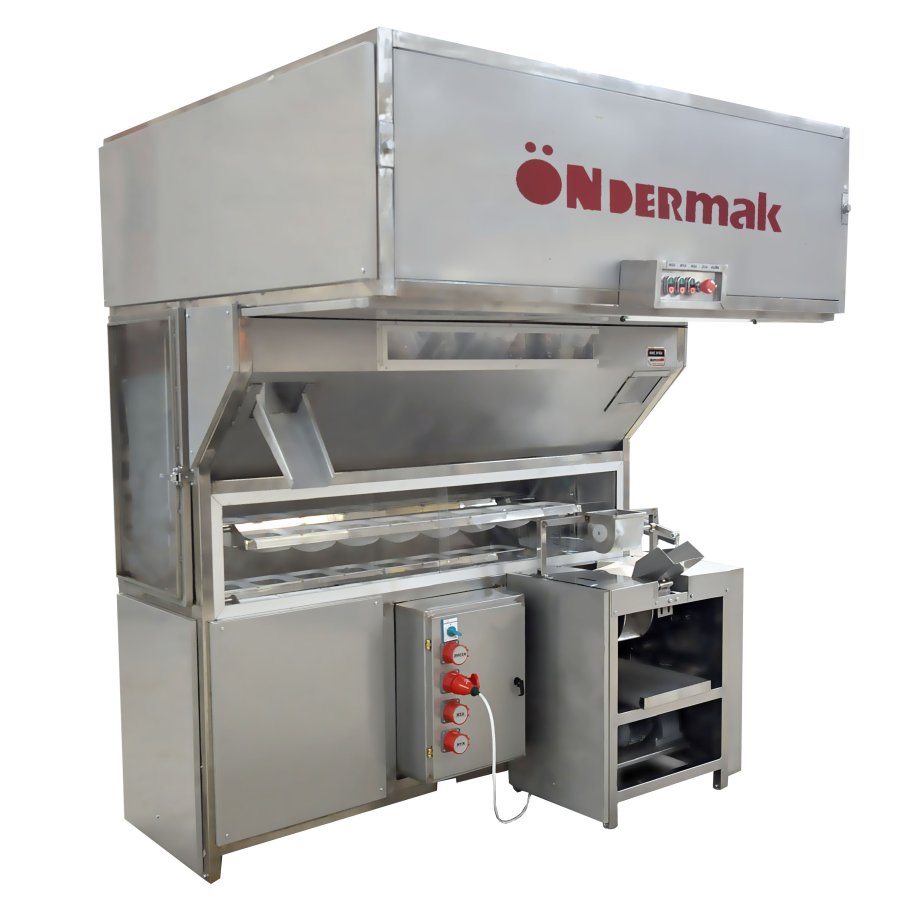

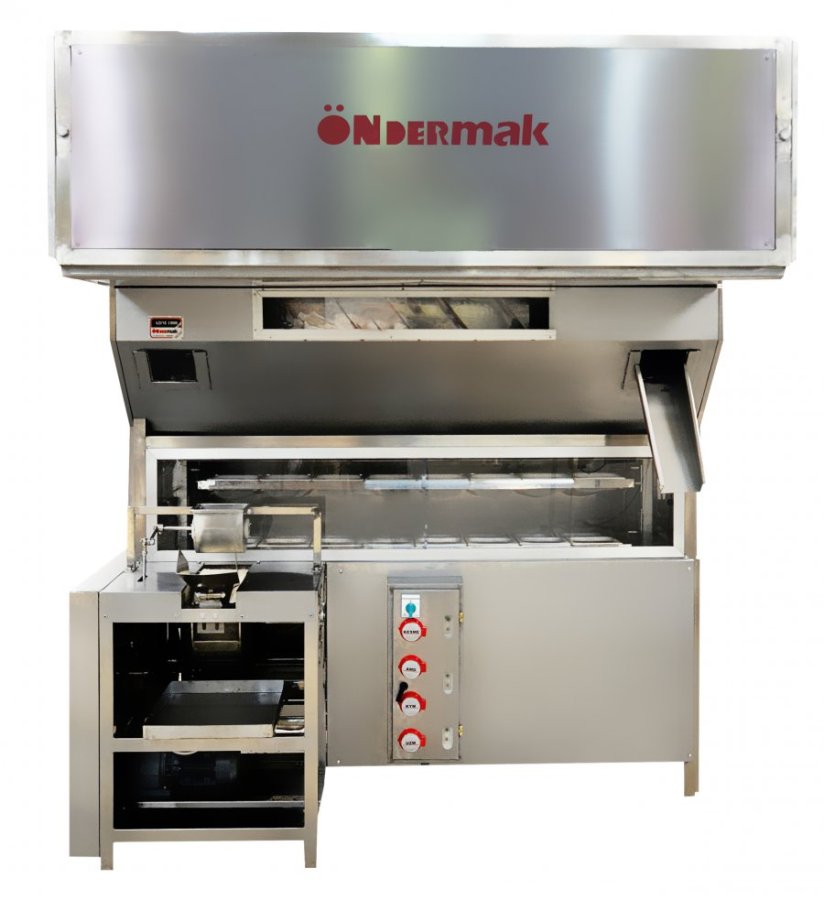

Intermediate Proofer L-Type (Without Mid Support)

  • Universal Compatibility – Compatible with all equipment.
  • High-Capacity Design – 26 rows, 208 pockets, with a 7-minute resting time.
  • Flexible Dough Handling – Triple-sided dough feeding stand (left/right or back) and dual-sided dough output.
  • Advanced Mesh Pockets – Non-stick, FDA-compliant, wide square nylon mesh pockets for optimal dough handling.
  • User-Friendly Maintenance – Easy-to-replace mesh pockets.
  • Integrated Flour Duster Unit – Ensures consistent flour distribution.
  • Premium Chain Setup – Durable, non-stretching, and noiseless chain system, designed by Ondermak, with a minimum 10-year lifespan.
  • Stainless Steel Construction – Rows made from stainless steel profiles for enhanced durability.
  • Enhanced Visibility – Transparent workflow windows for monitoring operations.
  • Efficient Waste Management – Dough and flour recycle trays at the bottom.
  • Robust & Hygienic Build – Entirely stainless steel panels and structure, ensuring hygiene and longevity.
  • Modular & Mobile – Entirely modular structure with heavy-duty wheels for easy relocation.
  • Optimized Supervision – LED lighting for easy monitoring.
  • Optional Advanced Features – Air blower, ultraviolet light, inverter speed control device, touch screen, and Photocell.
  • Certified Quality & Warranty – CE-certified with a 2-year warranty.



Technical Specifications

Model



ADM 1800

Kapasite / Capacity / Capacidad

Adet/sa. - Pcs/hr.

1800

Askı Sayısı / Row Number / Numero De Cargadoras

Nr.

26

Tas Sayısı / Pocket Number / Numero De Bolsas

Nr.

208

Dinlenme Zamanı/ Resting Time / Tiempo De Reposo

dk/minutes/minuto

6-7

 Genislik (W) / Width / Ancho

mm

1930

Uzunluk (L) / Length / Largo

mm

1600

Yükseklik (H) / Height / Altura

mm

2350

Hamur Giris Yüksekligi (H1) / Dough Input / Masa Entrada

mm

964

 Elektrik Gücü / Electric Power / Energía

KW

0,37

Elektrik Baglantı / Electric Connection / Conexión Electrica

Volt-Vac/Hz

380 V50Hz N+PE 3 Phase

Agırlık / Weigth / Peso Neto

Kg

550

Hamur Tasıma / Dough Weigth / Masa Peso

gr

50-1200

Tas Ölçüsü / Pocket Size / Bolsa Dimension

mm

170x170

Un tepsisi / Flour Recyle Tray / Bandeja De Harina

-

Standard

Fan + Uv ısık / Air Flow + Uv ligths / Ventildor + Uv lamparas

-

Opsiyonel/Optional/ Opcional

Hız Rölesi + PLC Smart Pan./ Speed Control +PLC / Variador+ PLC

-

Opsiyonel/Optional/ Opcional

Materyal / Material

Paslanmaz

Stainless Steel – Acero Inoxidable

Tas Tipi / Pocket Type / Tipo De Bolsa

Kare Tül Tas/ Nylon Mesh Pocket/Fieltro Sintetico
